Marine fabrication

From measures to production-ready pattern faster than ever.

New era has begun. Fabricator builds the 3D surface, solves the physics and exports the flat pattern — So your CAD time goes into design, not modelling.

Try now How it works

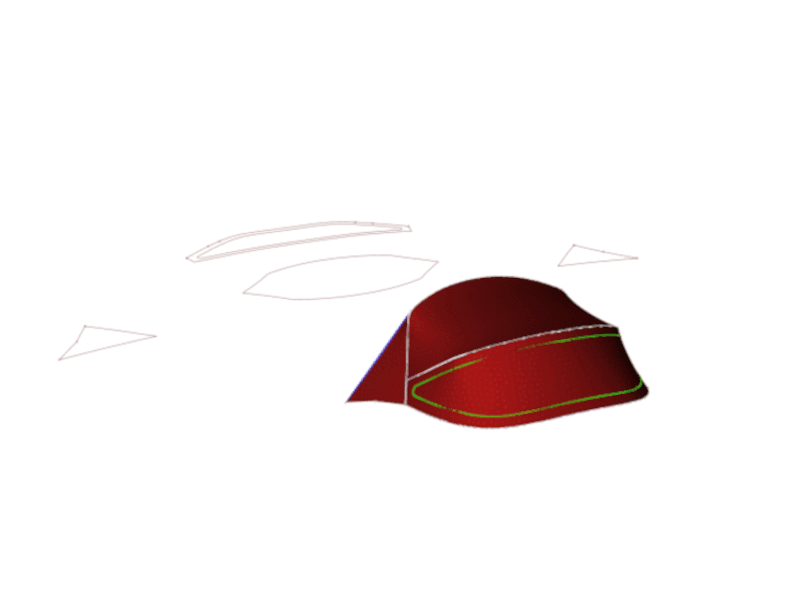

Wireframe input — edges with assigned roles

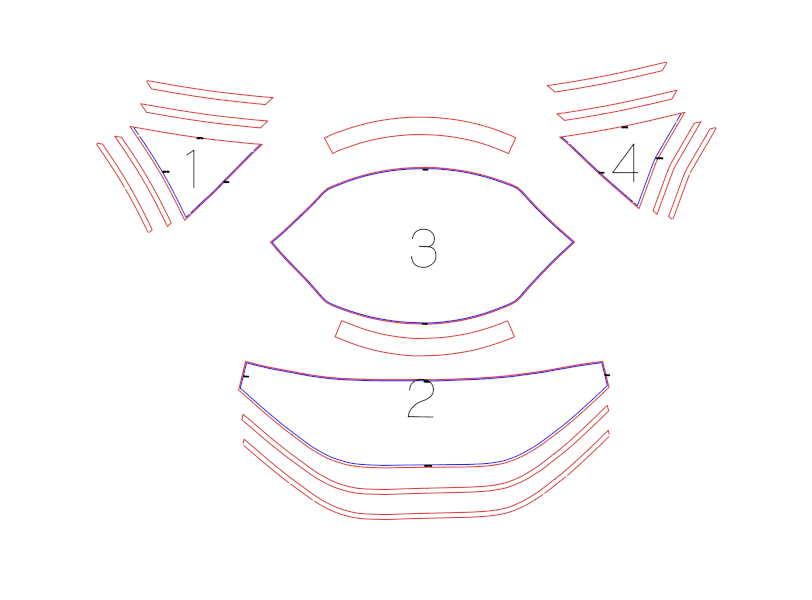

Flat pattern output — DXF panels with seams and notches

Production time: up to 99% faster
Rhino plugin: Included
Export: DXF · 3DM

How it works

Few simple steps. No manual surface modeling, no guessing.

The hardest part is now automated. Prepair the 3D Wireframe and specify the seamtypes - Fabricator does the rest.

01
3D Make a wireframe
IN: Draw the wireframe - define the line types - select details. OUT: 3D-mesh and flatten shapes including all the details
02
2D Select the edge types
Flatten shape is already formed based on the fabric behavior. Next you define where you want zippers, reinforcements, pockets for frames, etc..
03
Done
Now you have the project done and the line layered. Cut lines, pen lines, notches and all other details you defined.

Why switch

True benefits. Great results.

Fabricator changes the way modelling is done. Completely.

Feature	Rhino 3D-modelling manually	Rhino + FabricatorRecommended
Workflow	✕Surface-by-surface (100+ steps)	✓Wireframe + Solver
Form-Finding	✕Non	✓Automated physics simulation
Revisions	✕Manual redo of all parts	✓Modity the wireframe and re-solve
Output Detail	✕Manual notching and marking	✓Panels, notches, marks, reinforcements — all automated
Starting Point	✕Non	✓Personal settings for seams, layers, pockets..
